project name

Performing Arts Studios \ University of Winchester

A robust environment which promotes creative freedom for the users.

Project Details

Client
University of Winchester
Our Service
Architect
Location
University of Winchester
Completion Date
2009
Contract Value
£1.8m
Area
1200 m2
Download Project

Project Team

Structural Engineer
Gyuory Self
Specification Writer
Design Engine
Fire Consultant
Grontmij
Acoustic Consultant
English Cogger Partnership
Landscape Consultant
Creating Place
Lighting Consultant
Roger Preston

Project Awards

Civic Trust Award 2012
BCIA Finalist 2012

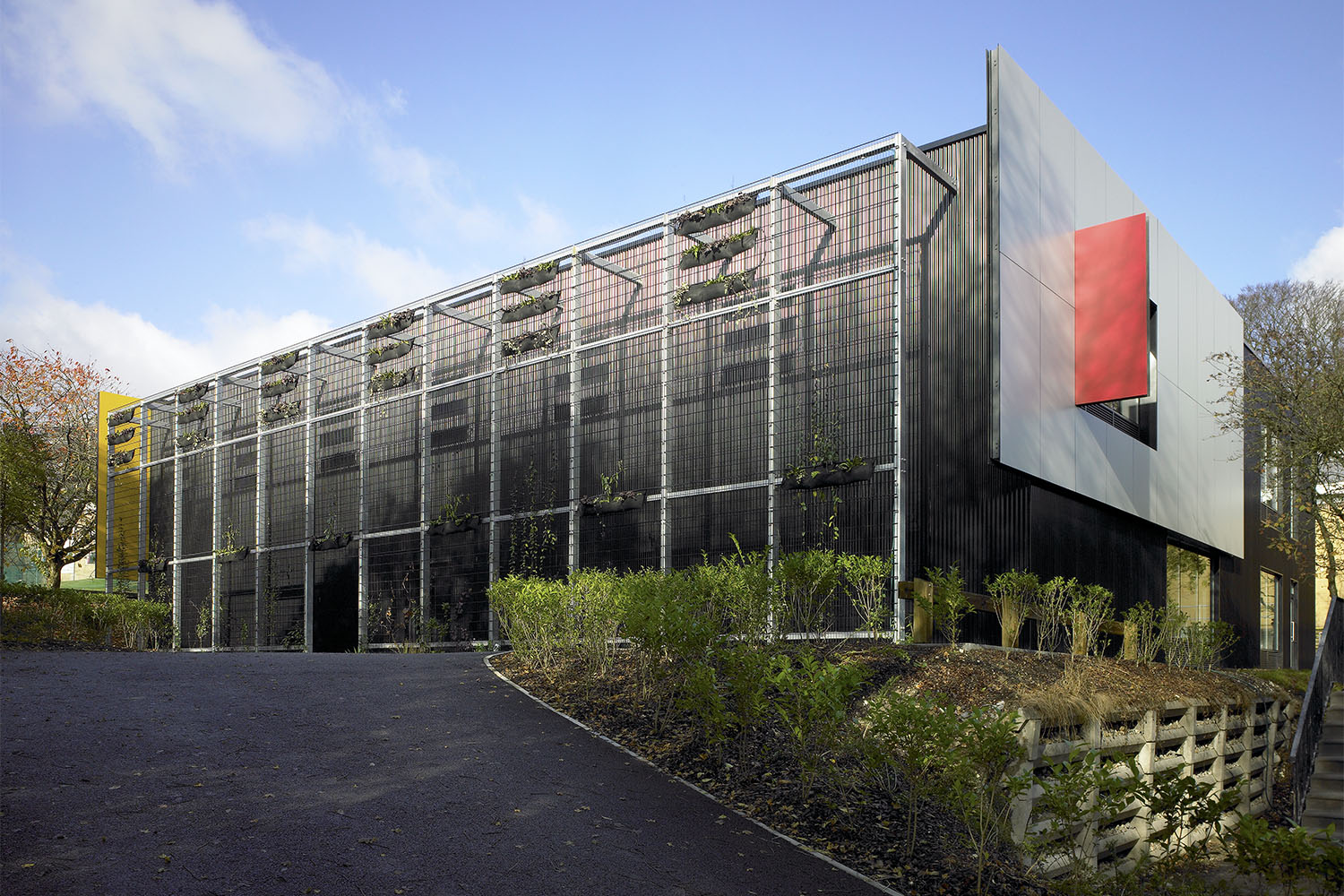

Design Engine Arts Studio UoW Exterior

“I think it is a great achievement by the entire design team to produce a building that meets a very innovative brief. The success of the building is very clearly endorsed by staff and students at the University.”John Mann, Director of Estates, University of Winchester

Performing Arts Studio

This project, Design Engine’s fourth major collaboration with the University of Winchester, is a 11,000 sqft arts faculty building. Sitting in a natural bowl, the three-storey centre is linked to other parts of the faculty and consists principally of voluminous dance studios with break-out communal areas between them.

The budget of £1.8m was a demanding one for such accommodation and the project was constructed through a design and build procurement route in six months; with Design Engine providing full information before acting as Employer’s Agent for the contract.

Design Engine Arts Studio UoW InteriorDesign Engine Arts Studio UoW InteriorDesign Engine Arts Studio UoW Interior

The Brief

The University needed to provide their Performing Arts Faculty with new and dedicated accommodation. This follows a re-organisation of teaching space between Business Studies and Performing Arts within the campus.

The design had to respond to a tight programme with just 14 months from conception to completion, and a budget of approximately £1,800,000. A ‘stripped down’ aesthetic was therefore chosen to meet these requirements, to create a robust environment and promote creative freedom for the users.

The studios provide a flexible teaching environment for physical theatre and human movement as well as seminars and academic workshops. The drama studios are also used to teach stage management courses in conjunction with technical equipment for lighting and sound.

Design Engine Arts Studio UoW ExteriorDesign Engine Arts Studio UoW InteriorDesign Engine Arts Studio UoW InteriorDesign Engine Arts Studio UoW Exterior

The Design

The intention was to create an expression for the building that has empathy with the teaching spaces within it but that is also responsive to the surrounding context and orientation. Much of the building perimeter is obscured from direct view due to the nature of the site location and its adjacencies to surrounding buildings. We developed a strategy for each elevation based on where it can be viewed from and the relationship to neighbouring buildings, and the campus generally.

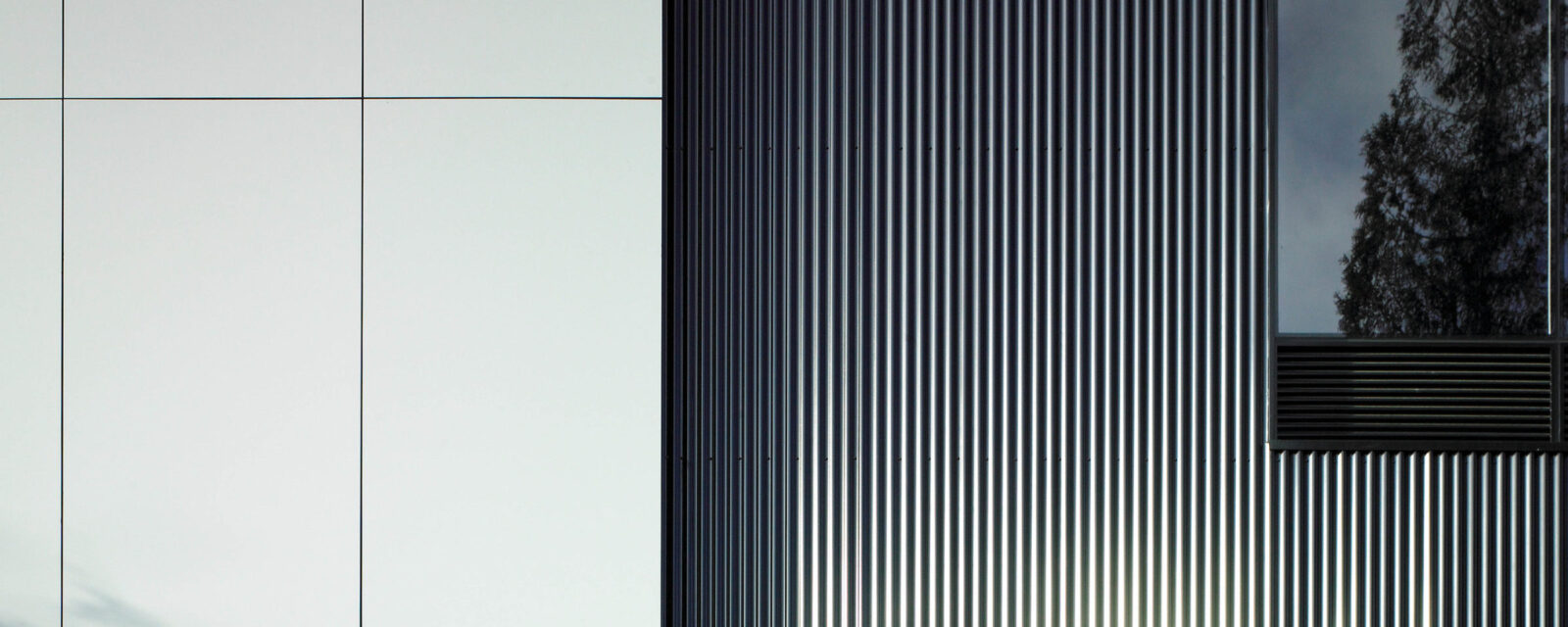

Entering on the north side allows us to give the Performing Arts Faculty its own identity. A graphic wall was proposed adjacent to the main entrance, consisting of illuminated vinyl graphics applied to the flush fixed cladding panels. These can be changed to respond to specific events or to stay ‘fresh’.

Careful thought was given to creating a sustainable environmental solution that would meet the needs of the end user, neighbours and wider community. The acoustic requirements and the desire to achieve a naturally ventilated solution have had a major influence on the design principles.
